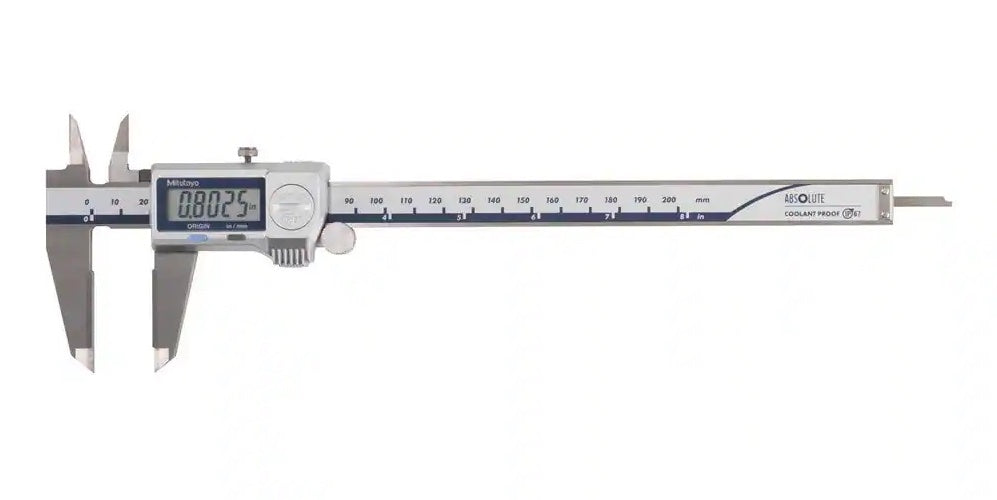

MITUTOYO 500-752-20 Electronic Caliper: 0 to 6″, 0.0005″ Resolution, IP67

SKU MIT-500-752-20
Product Details (500-752-20)

IP67 Absolute Coolant Proof Calipers

  • IP67 level of protection against coolants, dust, dirt, chips, and temporary water submersion.
  • Includes certification for IP complaince by an internationally recognized certification company.
  • Oil resistant materials are used in all plastic components to survive cutting fluids.
  • Incorporates Absolute measurement system with set and forget technology.
  • Custom chips are designed by Mitutoyo to increase battery life and functionality.
  • NIST traceable certification to insure accuracy.
  • Automatic power-on/off.



Accuracy Plus/Minus (Decimal Inch) 0.0010
Minimum Measurement (Decimal Inch) 0.0000
Minimum Measurement (mm) 0.00
Maximum Measurement (Decimal Inch) 6.0000
Maximum Measurement (mm) 150.00
Maximum Inside Diameter Measurement (Inch) 6
Maximum Inside Diameter Measurement (mm) 150.00
Resolution (mm) 0.0100
Resolution (Decimal Inch) 0.0005
Caliper Material Stainless Steel
Jaw Material Stainless Steel
Data Output No
Jaw Length (mm) 40.00
Jaw Length (Decimal Inch) 1.5748
Jaw Adjustment Type Sliding
Power Source Battery
Number Of Batteries 1
Battery Size SR44
Finish Hardened Stainless Steel
Offset Jaw No
Includes Inside Diameter Jaws Yes
Includes Depth Measurement Rod Yes
Application Inside Diameter; Step; Outside Diameter; Depth
Includes Case
Standards TUV Rheinland Certified
Series 500
Ip Rating IP67

Save 10% Save 10%
Original price $237.00
Original price $237.00 - Original price $237.00
Original price $237.00
Current price $213.30
$213.30 - $213.30
Current price $213.30
in stock, ready to be shipped
