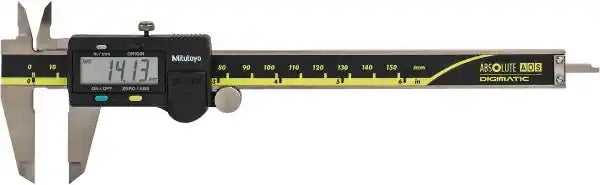

MITUTOYO 500-196-30 Electronic Caliper: 0 to 6″, 0.0005″ Resolution

MITUTOYO 500-196-30 Electronic Caliper: 0 to 6″, 0.0005″ Resolution

by Mitutoyo
SKU MIT-500-196-30

Features ( 500-196-30)

AOS Absolute Digimatic Caliper

• The ABS (absolute) scale requires no origin setting after power-on and also has no limit to response speed.
  • The slider configuration features an ergonomic, thumb-friendly shape.
  • Step-measurement capable.
  • Font height: 9mm, alleviation of fatigue with the high-contrast LCD
  • Carbide-tipped jaw models are ideally suited to the measurement of rough-machined workpieces, castings, grindstones, etc.
AOS (Advanced Onsite Sensor)
  • Electromagnetic inductive sensor repels dirt, oil and water ensuring 100% accuracy.

Specifications

Accuracy Plus/Minus (Decimal Inch) 0.0010
Accuracy Plus/Minus (mm) 0.03
Minimum Measurement (Decimal Inch) 0.0000
Minimum Measurement (mm) 0.00
Maximum Measurement (Decimal Inch) 6.0000
Maximum Measurement (mm) 150.00
Maximum Inside Diameter Measurement (Inch) 6
Maximum Inside Diameter Measurement (mm) 150.00
Resolution (Decimal Inch) 0.0005
Caliper Material Stainless Steel
Jaw Material Stainless Steel
Data Output No
Jaw Length (mm) 40.00
Jaw Adjustment Type Standard
Power Source Battery
Number Of Batteries 1
Battery Size SR44
Finish Hardened Stainless Steel
Offset Jaw No
Includes Inside Diameter Jaws Yes
Includes Depth Measurement Rod Yes
Application Inside Diameter; Step; Outside Diameter; Depth
Includes Case
Standards TUV Rheinland Certified
Series 500
Jaw Type Standard
Save 10% Save 10%
$177.00
$177.00 - $177.00
$177.00
$159.30
$159.30 - $159.30
$159.30
Availability:
in stock, ready to be shipped
