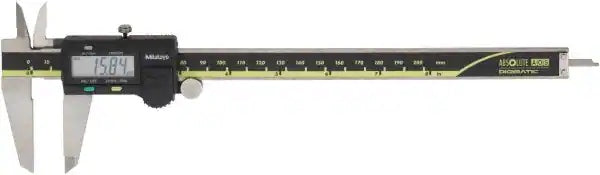

MITUTOYO 500-197-30 Electronic Caliper: 0 to 8″, 0.0005″ Resolution

SKU MIT-500-197-30

Features ( 500-197-30)

AOS Absolute Digimatic Caliper

• The ABS (absolute) scale requires no origin setting after power-on and also has no limit to response speed.
  • The slider configuration features an ergonomic, thumb-friendly shape.
  • Step-measurement capable.
  • Font height: 9mm, alleviation of fatigue with the high-contrast LCD
  • Carbide-tipped jaw models are ideally suited to the measurement of rough-machined workpieces, castings, grindstones, etc.
AOS (Advanced Onsite Sensor)
  • Electromagnetic inductive sensor repels dirt, oil and water ensuring 100% accuracy.


Accuracy Plus/Minus (Decimal Inch) 0.0010
Accuracy Plus/Minus (mm) 0.03
Minimum Measurement (Decimal Inch) 0.0000
Minimum Measurement (mm) 0.00
Maximum Measurement (Decimal Inch) 8.0000
Maximum Measurement (mm) 200.00
Maximum Inside Diameter Measurement (Inch) 8
Maximum Inside Diameter Measurement (mm) 200.00
Resolution (mm) 0.0100
Resolution (Decimal Inch) 5.0000000000000001E-4
Caliper Material Stainless Steel
Jaw Material Stainless Steel
Data Output No
Jaw Length (mm) 50.00
Jaw Adjustment Type Standard
Power Source Battery
Number Of Batteries 1
Battery Size SR44
Finish Hardened Stainless Steel
Offset Jaw No
Includes Inside Diameter Jaws Yes
Includes Depth Measurement Rod Yes
Application Inside Diameter; Step; Outside Diameter; Depth
Includes Case
Standards TUV Rheinland Certified
Series 500
Jaw Type Standard

Save 10% Save 10%
Original price $255.00
Original price $255.00 - Original price $255.00
Original price $255.00
Current price $229.50
$229.50 - $229.50
Current price $229.50
in stock, ready to be shipped
