MITEE-BITE 60050 8-32 THREAD MACHINABLE WEDGE CLAMP

SKU MITEE-60050

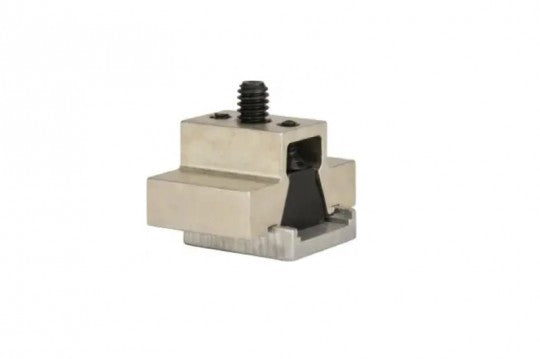

Mitee-Bite T-Slot Wedge Clamp w/ Locking Plate 60050

Machinable Uniforce® Clamps

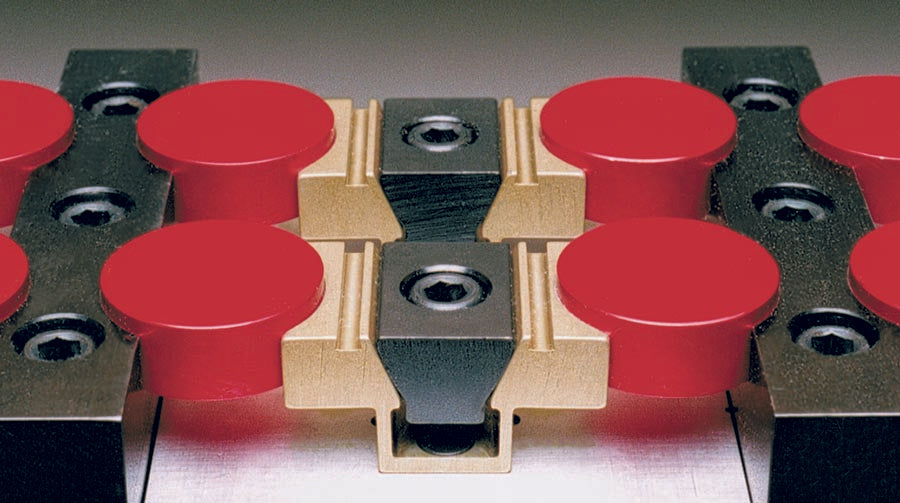

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece – enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.



Model Part No.
with
Locking Plate
Part No.
without
Locking Plate
A* B C D E F† G H** I Max
Torque
(Ft/lbs.)
Holding
Force
(lbs.)
Replacement
Steel
Replacement
Channel
500 60050 CAD 60055 CAD 1.125 .50 .62 .420 .25 .18 .400 2-56 8-32 2.5 500 60310 60140



SKU mitee-60050
MFG SKU # 60050
WEDGE CLAMP STYLE T-Slot
BRAND Mitee-Bite
SINGLE OR DOUBLE WEDGE Single
MACHINABLE Yes
THREAD SIZE 8-32



CLAMPING FORCE (LBS) 500
MAXIMUM TORQUE FT/LB 2.5
BASE HEIGHT 0.500
BASE WIDTH 1.125
BASE DEPTH 0.420
PROJECTION FROM BASE 0.250
OVERALL WIDTH 1.250



Save 15% Save 15%
Original price $25.00
Original price $25.00 - Original price $25.00
Original price $25.00
Current price $21.25
$21.25 - $21.25
Current price $21.25
Availability:
in stock, ready to be shipped
