40413 – 1/4″ Hose Assembly Kit

Sold out
SKU 40413

40413 – 1/4″ Hose Assembly Kit

Approx Assembled Length” 1ft

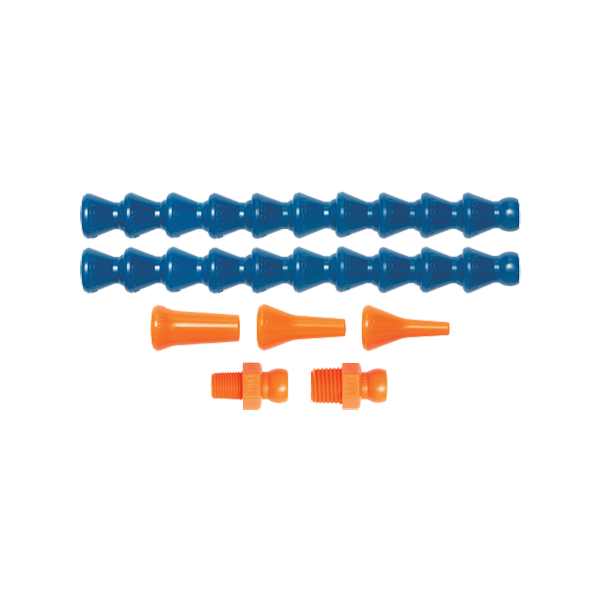

Kit includes: 1pc ea 1/8″ npt 1/4″ npt, 1/16″Nozzle,1/8″Nozzle,1/4″ Nozzle, 2pc 1/4″ Segment 5.5″ each

Materials and Properties:

Material: Acetal Copolymer

Colors: Orange


Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide

No: ChlorineAcids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite

Melting Point: 329° F

Maximum Operating Temperature: 170° F (Repeated exposure to this temperature will cause fatigue)

Recommended Maximum Line Pressure & Flow Rates:

1/4″ System 50 PSI 250 gal/hour

1/4″ System With Element Clamps 110 PSI 500 gal/hour
